Drester Wheel washers
Drester Wheel washers

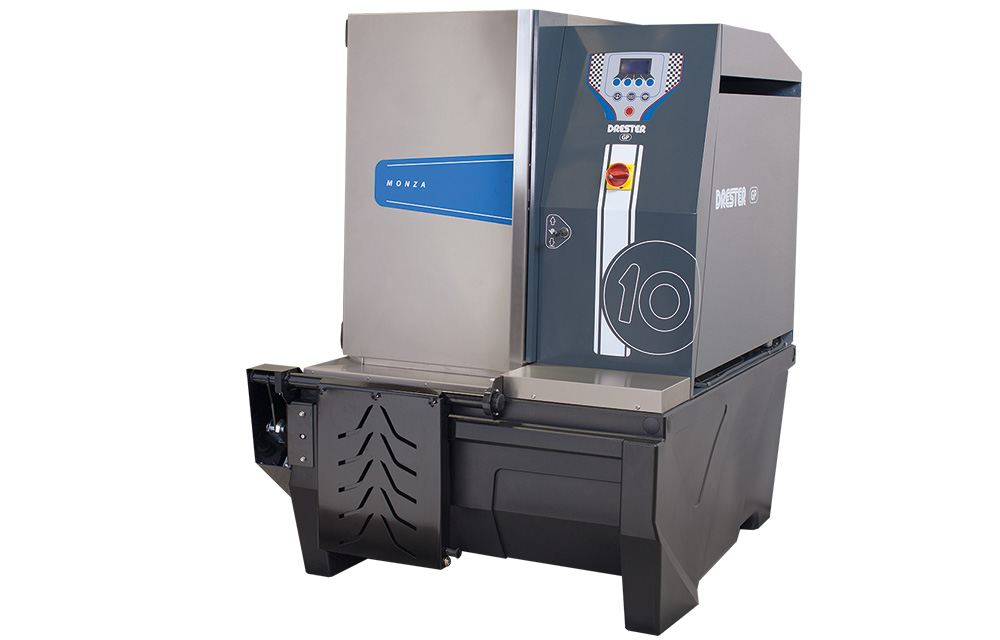

Drester GP10 Monza Wheelwasher
Advanced wheel washer with two fixed nozzles and optional QuickLift
Drester Wheel washers

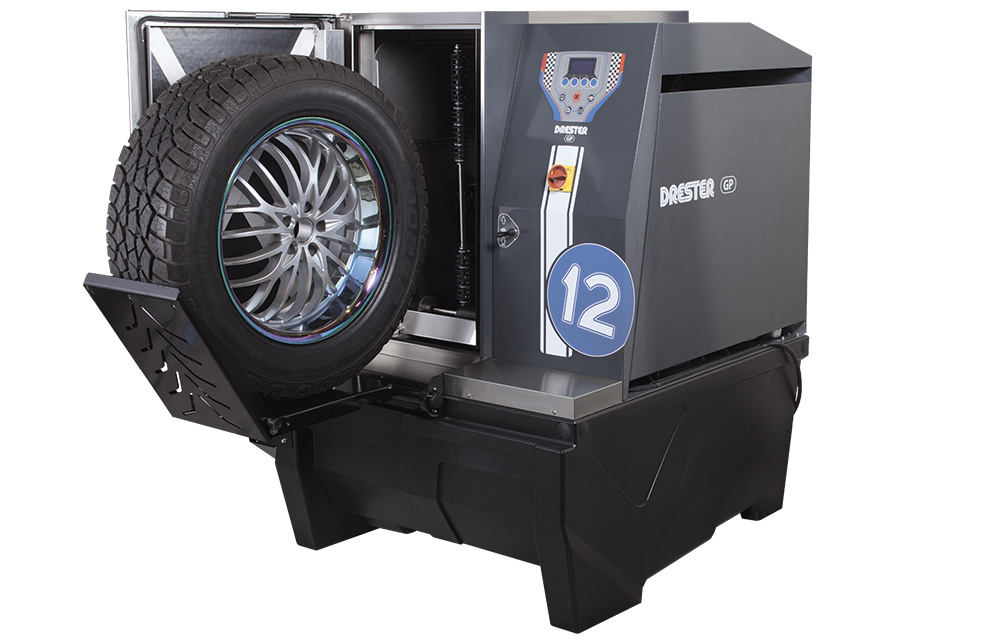

Drester GP12 Silverstone Wheelwasher
Advanced wheel washer with dynamic flushpipes and optional QuickLift
Product type
- Drester Wheelwasher (3)
Application area
- Tire shop (3)
Lifting features
Lifting on wheels
Lifting on chassis
Onground or inground
Lifting capacity (kg)
With CE stop
Lifting hight (mm)
Overdrive height (mm)
Pit depth (mm)
Min wheelstand (mm)
Max wheelstand (mm)
Curing features
Infrared/UV LED
UV-LED
UV-HID
Battery powered or corded
Handheld
Floor mobile
Ceiling installation
Pyrometer
Thermal camera
Distance guide
Display for energy use
Spray booth
Automated movement
Pre programmed curing cycles
Temperature control over time
Curing area
Lamp Length in mm
Net or Glass Protection
Duct for external fan or internal fan
Elliptical or Parabolic Reflector Profile
Type of Heater
Heating Process
Type of Industry
Client Process
How to implement
What material to heat
Spray gun cleaning features
Washing stations
Cleaning medium
Manual wash zone
Automatic wash zone
Can be connected to Drester Recycler through Drester RDX unit
Fixed rinse nozzle with clean solvent
Automatic cleaning with recirculating solvent
Automatic rinsing with clean solvent
Flow-through brush with recirculating solvent
Flow-through brush with waterborne solution
Rinse gun with recycled waterbourne solution
Dual filter system for recycled water
Automatic agitation when flocculating
Air gun for drying
Air supply line and funnel for blowout
Time extension kit
Wheel washer cleaning features
Water Volume
- 300 liter (1)
- 310 liter (2)
Cleaning time per wheel
- Adjustable settings from 25-155 sec settings when delivered 25, 50, 75, 100 sec (2)
- Adjustable settings from 25-155 sec settings when delivered 30, 60, 90, 120 sec (1)
Heater
- YES (3)
Clean rinse
- YES (3)
Water cleaning
- YES (3)
Dynamic flushpipes / Fixed nozzles
- dynamic (2)
- 2 fixed nozzles (1)
Min. wheel width in mm
- 135 (1)
- 145 (2)
Max wheel diameter (mm)
- 800 (1)
- 860 (2)
Max wheel weight (kg)
- 45 (1)
- 60 (2)
Loading manually
- YES (2)
Loading automated (trolley loaded)
- YES (1)
- NO (2)
Trolleyloaded
Quicklift
- YES (2)
Product
- Drester GP24 Le Mans (1)
- Drester GP10 Monza (1)
- Drester GP12 Silverstone (1)
Article No.
- GP241- AKM (1)
- WD10302-AD1KLM (1)
- WD12304-AD1KLM (1)
Main purpose
- Cleaning tire (3)
Dimensions
Height (mm)
Length (mm)
Width / depth (mm)
Weight (kg)
- 320 + 56 (1)
- 230 +26 (1)
- 240 + 26 (1)
Resources, electricity
Power supply
- 400V, 3~, 50 Hz, 16 A (3)
Resources, air and water
Air supply
- 8-12 bar (120-174 psi) (3)
Air flow
- 1000 litre/min. at 7 bar (3)
Air consumption
- 400 litre/wash cycle (3)
Water consumption
- 1 litre/washed wheel + 0.3 litre/wheel for clean rinse (3)
Based on the name of the Herkules lift you can see some technical information.
E.G. Herkules AirgoMatic Compact 2810 DUO 11
2810 => 2,8 t lifting capacity and 100 cm lifting height
11 => onground
3010 => 3 t lifting capacity and 100 cm lifting height
3513 => 3,5 t lifting capacity and 130 cm lifting height
11 => onground
14 => inground with CE Stop
17 => onground for Transmobile
41 => onground
44 => inground
46 => inground with CE Stop
Less wasted energy with 24K gold.
The IRT FreeForm reflector is carefully designed so that no spots get too hot or too cold. We coat it with 24K gold that reflects up to 97% of the infrared energy onto the surface, not the surroundings.
Longlife lamps – low maintenance.
To keep everything running smoothly, a high-quality ventilation system prevents overheating. This help the lamps last way longer (up to 20.000 hrs).
Herkules can provide indivudually adapted lifts for cars, goods or persons.
The DUO lift can lift on wheels or on chassis.
Lift stops at 30 cm when going down to prevent foot injuries. When going further down a audible signal warns till the lift is completely down.
Some producers of lifts rever to working height as specification measurement. But working height depends on the person working with the lift. Lifting height is the standardized method we use to define the spcifications of a lift.
Net or Glass Protection?
The appropriate protection option depends on the operating environment of the SingleHeaters.
For dusty or contaminated production environments, glass protection is recommended to maintain performance and maximize lamp lifetime — up to 20,000 operating hours.
In cleaner environments, net/mesh protection is often sufficient and offers a more cost-effective solution.
We have gun cleaners for:
A (aqua) = Waterbased
S (solvent) = Solvent
C (combo) = Both waterbased and solvent
Our filters have been tested and approved by paint manufactures. The flocculated paint sludge is caught in a primary filter (pre-filter R8702, 5 pcs). For better performance, there is also a fine filter (main filter R8701, 5 pcs) which will trap even the tiniest particles. The filters are kept above the water to avoid mould and discolouring. Both filters can be reused several times. The pre- and main filter should always be used at the same time.
1 pre-filter and 1 main filter in correct position.
Drester GP24 comes with two trolleys (1 trolley = 2 tires).
The trolleys are docked together and to the wheel washer for completely automated wheel washing.
We recommend up to 4 trolleys for a smooth process. There are optional article numbers for a GP24 with two trolleys (always included) or 4 trolleys. Use theConfigure-function to choose your model
More trolleys can of course be ordered separately and be used for general handling/logistics (art nr 230556).
QuickLift is an option on Drester wheel washers GP12 and GP10 to help get the tire lifted into washing position in a more ergonomic way. The tire is pushed onto the cradle and is automatically positioned by the wheel washer entry point. It is manually pushed in to start a wash cycle.
If the power supply specification is not suitable,
look for the "Configure" button on the Product page
to choose a more suitable version.
