Drester GP24 Le Mans Wheelwasher

Full automation and maximum productivity

This wheel washer from Drester is the the perfect companion for high-volume operations. It is fully automatic – which increases productivity and profitability while also saving space and personnel in the workshop.

  • Load the wheels on a trolley, dock it to the wheel washer and push the start button
  • Washes most kinds of alloy and SUV wheels



The Drester GP24 Le Mans wheel washer cleans the wheels more carefully, more efficiently and more effectively than any other wheel washer on the market. It only takes 30 seconds to wash a dirty steel rim.

Drester GP24 Le Mans Wheelwasher

Drester GP24 Le Mans Wheelwasher

Product information

Best suited for:

  • Large tire shops
  • Automotive dealerships
  • Fleet maintenance facilities
  • Seasonal high-volume operations

On top of being an excellent wheel washer, the Drester GP24 is also:

  • Energy efficient, reducing energy consumption with up to 50 percent
  • Environmentally friendly,with advanced and water saving technology
  • A cash cow for the owner, saving time and money

So how does it work?

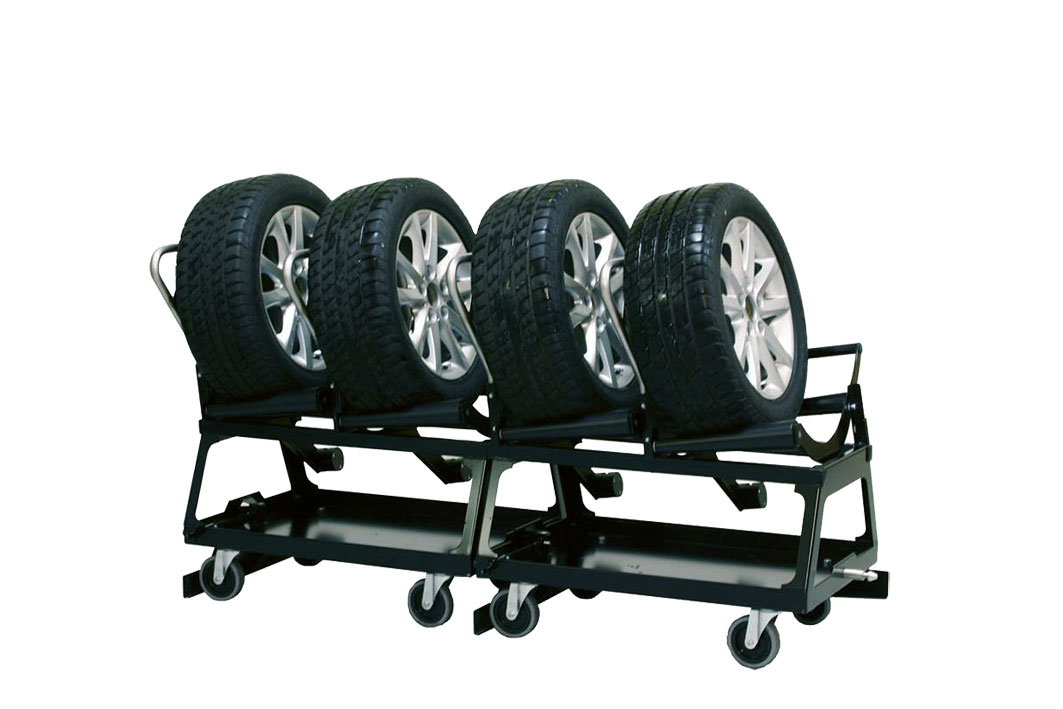

The Drester GP24 wheel washer is used with trolleys. Once the wheels are placed on the the trolleys (two are included in a standard purchase) the machine takes care of the rest.

You can load multiple trolleys after each other. The machine works automatically and without interruption until the last wheel is cleaned.

The cleaning process itself is done with water and plastic beads. Together they are blasted onto the rim with low pressure, ensuring a gentle and thorough cleaning for all kinds of alloy and SUV wheels.

The flush pipe sweeps along the outside of the rim during the cleaning process and this makes the target area of the granules more efficient than that of a fixed nozzle. The result is a thorough yet gentle wheel washer where no detergents or chemicals are needed.

Wheels with Tire Pressure Monitoring System (TPMS) are safely handled by the machine.

What about the environment?

The Drester GP24 wheel washer works with a closed water system and holds a water volume of 300 litres. Water consumption is 1 litre per washed wheel. The Clean Rinse function is designed to give the wheel a final rinse with clean water after the main washing cycle. It consumes around 0,3 litres per wheel.

The water should be changed every 300 wash cycles. If the Clean Rinse function is being used it may be increased to approximately 400-500 washes. Drester has developed a water cleaning and filtration method that separates contaminants from the wastewater. The water cleaning can either be made manually in the GP24 Wheel Washer or in an automated process by using the Drester Filter eQ water cleaning unit.

How is the energy consumption?

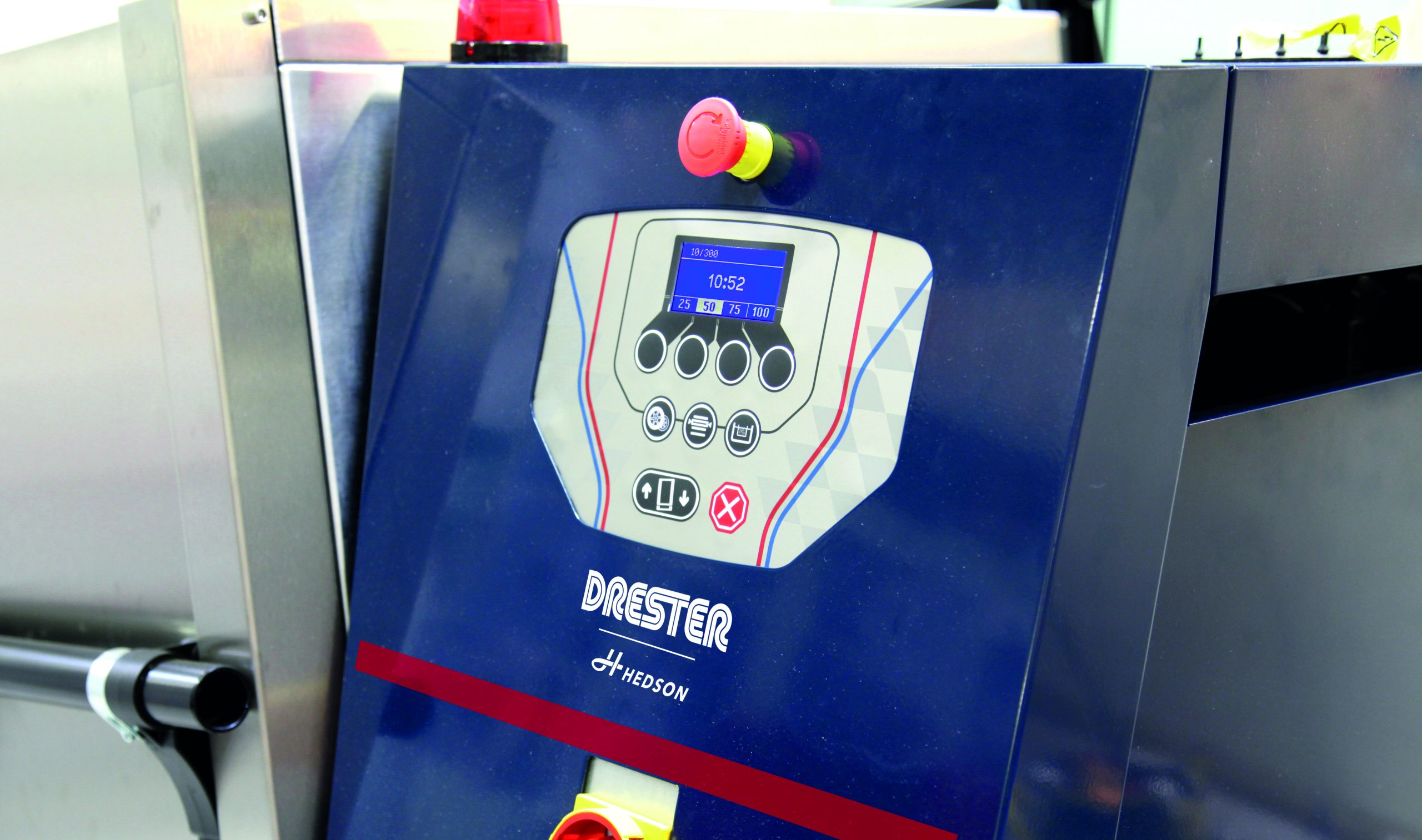

You can program the Drester GP 24 Wheel Washer according to the workshop’s operation schedule. Shortly put – the system automatically starts heating the water in advance so that it reaches the desired operating temperature at the selected start time, and also when it is no longer in use and which weekdays the schedule applies to.

The Drester GP24 combines high-performance wheel cleaning with environmentally responsible waste handling, creating a cleaner and more efficient workshop environment. This intelligent heating function can save up to 50 percent more energy compared to a traditional thermostat-controlled heater.

All in all, the GP24 is a wheel washer built for workshops that handle large wheel volumes and want a reliable, efficient, and easy-to-use cleaning solution for everyday operation.

Drester GP24 Le Mans Wheelwasher

Specifications

Weight (kg)320 + 56 kg
Length (mm)1620 mm
Height (mm)1550 mm
Width / depth (mm)1100 mm
Power supply Configure (3)
Water consumption1 litre/washed wheel + 0.3 litre/wheel for clean rinse
Air supply8-12 bar (120-174 psi)
Air flow1000 litre/min. at 7 bar
Air consumption400 litre/wash cycle
Water Volume300 liter
Cleaning time per wheelAdjustable settings from 25-155 sec settings when delivered 25, 50, 75, 100 sec
HeaterYES
Clean rinseYES
Water cleaning Configure (2)
Dynamic flushpipes/fixed nozzlesdynamic
Min. wheel width in mm135 mm
Max wheel width (mm)350 mm
Min wheel diameter (mm)540 mm
Max wheel diameter (mm)800 mm
Max wheel weight (kg)45 kg
Loading automated (trolley loaded)YES
Extra trolley Configure (2)

Drester GP24 Le Mans Wheelwasher

Product documents

Document nameDocument IDDocument typeLanguage
No documents found.
Document nameDocument IDDocument typeLanguage
No documents found.

Drester GP24 Le Mans Wheelwasher

Product images

Drester GP24 Le Mans Wheelwasher

Add ons

Accessories

Extra trolley (1 Pc.)

Article No.: DH-230556 Product type: Drester WW

Water cleaning Retrofit for GP Wheelwasher

Article No.: DH-230375 Product type: Drester WW

Granule Filter

Article No.: DH-230508 Product type: Drester WW

Consumables

Double power granules

Article No.: 230794 Product type: Drester WW

Hose Filter

Article No.: R12038 Product type: Drester WW

Basket Filter

Article No.: R12037 Product type: Drester WW

Flocculation Powder

Article No.: R12076 Product type: Drester WW

Detergent BIO 291

Article No.: BIO-291 Product type: Drester WW

Short medium granules blue/white

Article No.: R3230 Product type: Drester WW
