Drester Ace Triple Combo DG3C

New and unique Capture@Source ventilation that captures emissions close to the source. User exposure is minimized.

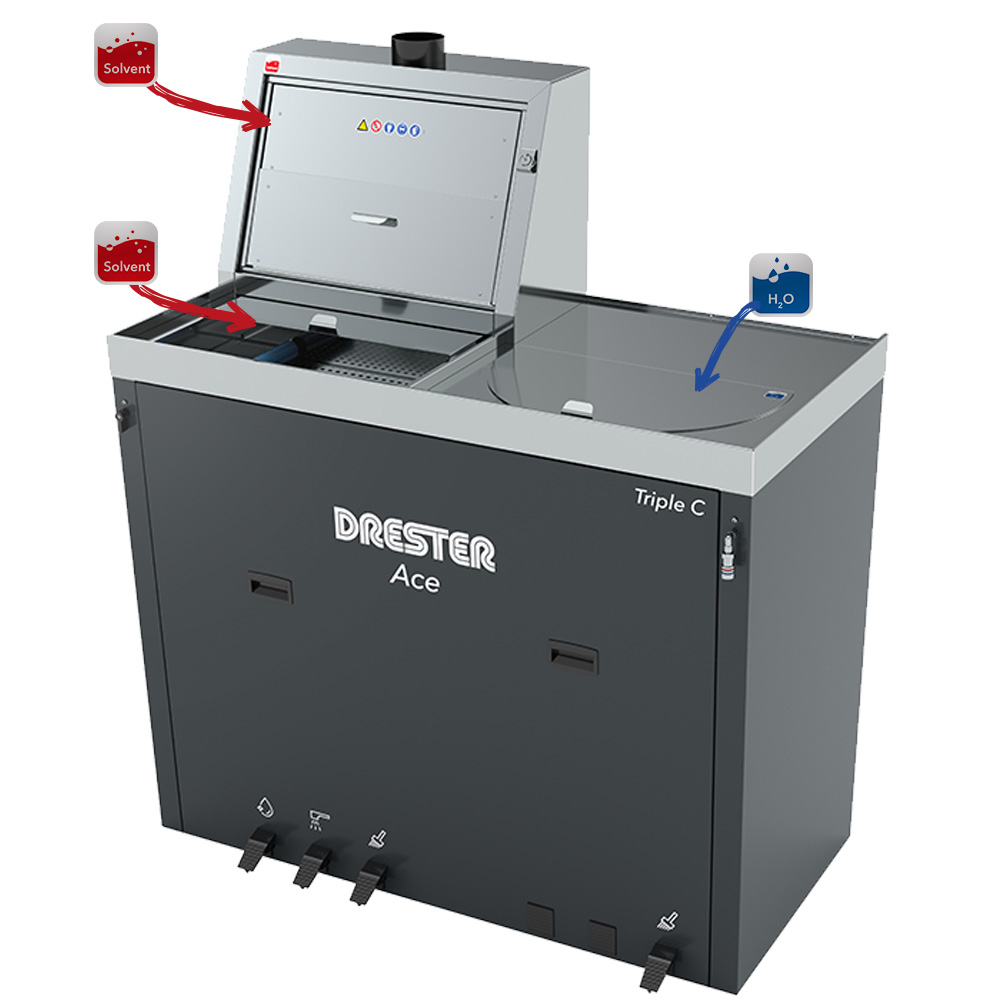

  • Ace Triple Combo with 3 washing stations, 2 for solvent and 1 for waterborne solution.
  • All-stainless wash zones for solevent, easy to keep clean. Cabinet grey RAL7016.
  • Comfortable work position and clear visibility.
  • Custom nozzle configurations and spray patterns deliver superior cleaning results. Removable and easy-to-clean components.
  • Patented universal spraygun holder.

Drester Ace Triple Combo DG3C
Drester Ace Triple Combo DG3C
Drester Ace Triple Combo DG3C
Drester Ace Triple Combo DG3C

Drester Ace Triple Combo DG3C

Product information

Ace Triple Combo; Auto-wash in the top compartment (solvent) and manual wash in the lower wash zones. Maximize your washing power, use both at the same time!

Pedals, left to right:
Automatic rinsing with clean solvent (after auto wash).
Manual, fixed rinse nozzle with clean solvent.
Flow-through brush with recirculating solvent (manual wash zone).
Flow-through brush with recycled waterborne solution (manual wash zone).
Manual washing zone: Flow-through brush with recirculating solvent (switch- and pedal operated).

All washing zones have easily removable working platforms. A breeze to clean with smooth welded edges inside.

Optional lid for manual waterborne wash zone.

Flow-through brush (switch- and pedal operated) and rinse gun (switch operated) with recycled waterborne solution.

Patented spraygun holder

Our patented universal spray gun holder opens the paint channel and fixes the spray gun in seconds, with the air channel protected by an air purge hose.
Always excellent cleaning results and fits all spray gun brands immediately.

Capture@Source ventilation

Drester Capture@Source ventilation provides superior working conditions. High speed extraction of the vapours at the source means minimized user exposure.
Capture@Source uses discreet and out of the way vents to intercept the vapors.

Pumps (ATEX cat 1/zone 0, solvent groups IIA and IIB)

Our pump, the powerhouse behind all our systems, is focused on efficiency. Unparalleled flow and pressure from our pumps ensure the best possible cleaning power. The new advanced design of the wash compartment nozzle system is only possible, thanks to the robust pump, resulting in more effective wash cycles. With a track record of success spanning over 30 years, almost 200.000 Drester pumps were supplied.

Drester Ace Triple Combo DG3C

Video

This 2 minute video demonstrates the model Quattro Combo.
The Triple Combo has all the same features except for the auto-wash zone for waterbased.

Drester Ace Triple Combo DG3C

Specifications

Weight (kg)90 kg
Length (mm)1190 mm
Height (mm)1488 mm
Width / depth (mm)675 mm
Air supply7-12 bar / 110-180 psi
CabinetGrey RAL 7016
Washing stations3
Cleaning mediumWaterborne and Solvent
Manual wash zoneYES
Automatic wash zoneYES
Can be connected to Drester Recycler through Drester RDX unitYES
Fixed rinse nozzle with clean solventYES
Automatic cleaning with recirculating solventYES
Automatic rinsing with clean solventYES
Flow-through brush with recirculating solventYES
Flow-through brush with waterborne solutionYES
Automatic cleaning with recycled waterborne solutionNO
Rinse gun with recycled waterbourne solutionYES
Dual filter system for recycled waterYES
Automatic agitation when flocculatingYES
Air gun for dryingYES
Air supply line and funnel for blowoutYES
Time extension kitYES
Extractor diameter100 mm (3.94")
Drum volumeSolvent 20-60 l Aqua 20-25 l

Drester Ace Triple Combo DG3C

Product documents

Document nameDocument IDDocument typeLanguage
Product Manual Drester ACE 231721-R4 Manual EN, DE, FR, NL, SE, IT, ES
Download
Brochure Drester ACE Brochure Drester ACE (EN) Brochure EN
Download
Show all documents
Document nameDocument IDDocument typeLanguage
No documents found.

Drester Ace Triple Combo DG3C

Product images

Drester Ace Triple Combo DG3C

Add ons

Accessories

MAGNETIC GUN HOLDER, for 2 to 3 guns. Fit it standing on the working platform/hood top or hanging on the side of the cabinet. Holds two guns with cups, or three guns without cups.

Article No.: 15650 Product type: Drester GC

FLOW-THROUGH WASH BRUSH

Article No.: 231866 Product type: Drester GC

WASH BRUSH 3 pcs of 231866

Article No.: R-4460 Product type: Drester GC

COLLECTING TRAY on wheels, large

Article No.: 231778 Product type: Drester GC

WATER VALVE KIT ACE, to allow connection to tap water, also allows pumping of water to drain

Article No.: 231920 Product type: Drester GC

WATER LID ACE

Article No.: 231739 Product type: Drester GC

Consumables

OPTIONAL MAIN FILTER 5 pcs, economical alternative to R8701

Article No.: 8703 Product type: Drester GC

PRE-FILTER (thin) 5 pcs

Article No.: R8702 Product type: Drester GC

Box of 20 x R8702 (PRE-FILTER, thin, 5 pcs). Total 100 filters.

Article No.: R8702-20 Product type: Drester GC

MAIN FILTER (thick) 5 pcs

Article No.: R8701 Product type: Drester GC

Box of 10 x R8701 (MAIN FILTER, thick, 5 pcs). Total 50 filters.

Article No.: R8701-10 Product type: Drester GC
Image of FLOCCULATION POWDER, 1,5 kg

FLOCCULATION POWDER, 1,5 kg

Article No.: R9211 Product type: Drester GC
Image of Box of 8 x R9211 (FLOCCULATION POWDER, 1,5 kg)

Box of 8 x R9211 (FLOCCULATION POWDER, 1,5 kg)

Article No.: R9211-8 Product type: Drester GC
Image of AQUASOLVE, concentrate 1 Liter bottles. Package of 12. pH 7, with anti-corrosive additives to protect the gun.

AQUASOLVE, concentrate 1 Liter bottles. Package of 12. pH 7, with anti-corrosive additives to protect the gun.

Article No.: 230120 Product type: Drester GC
