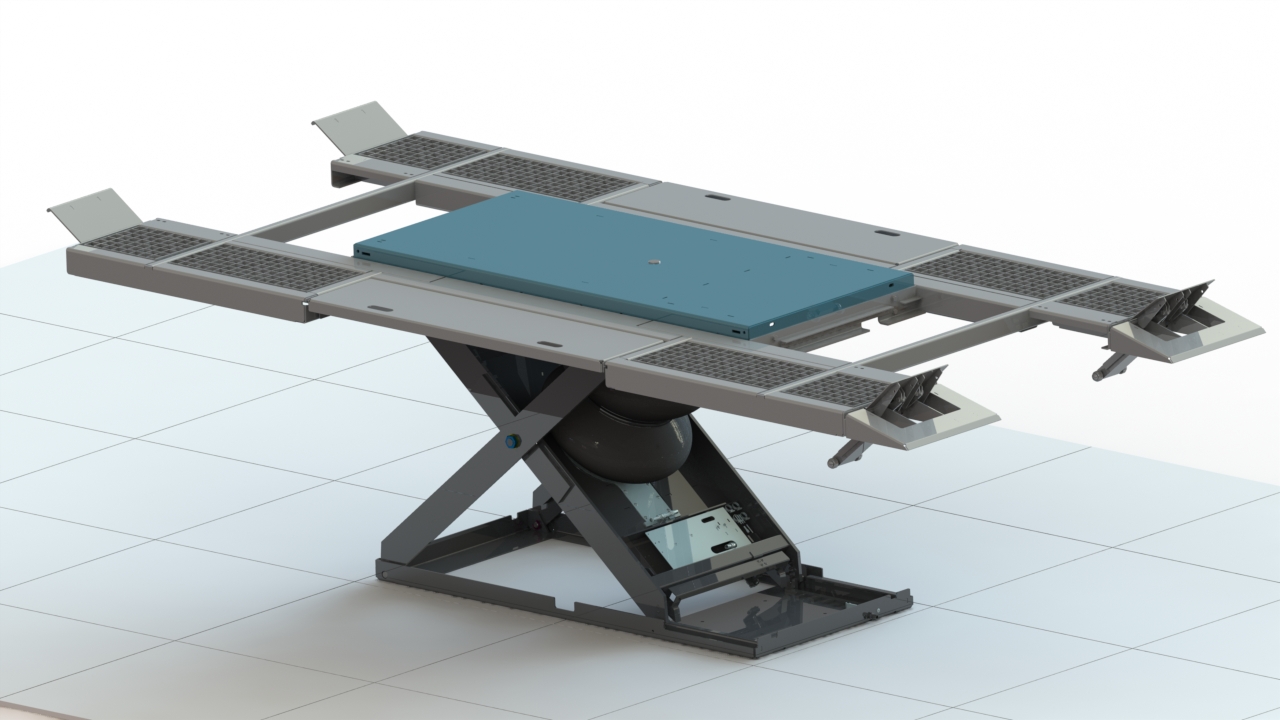

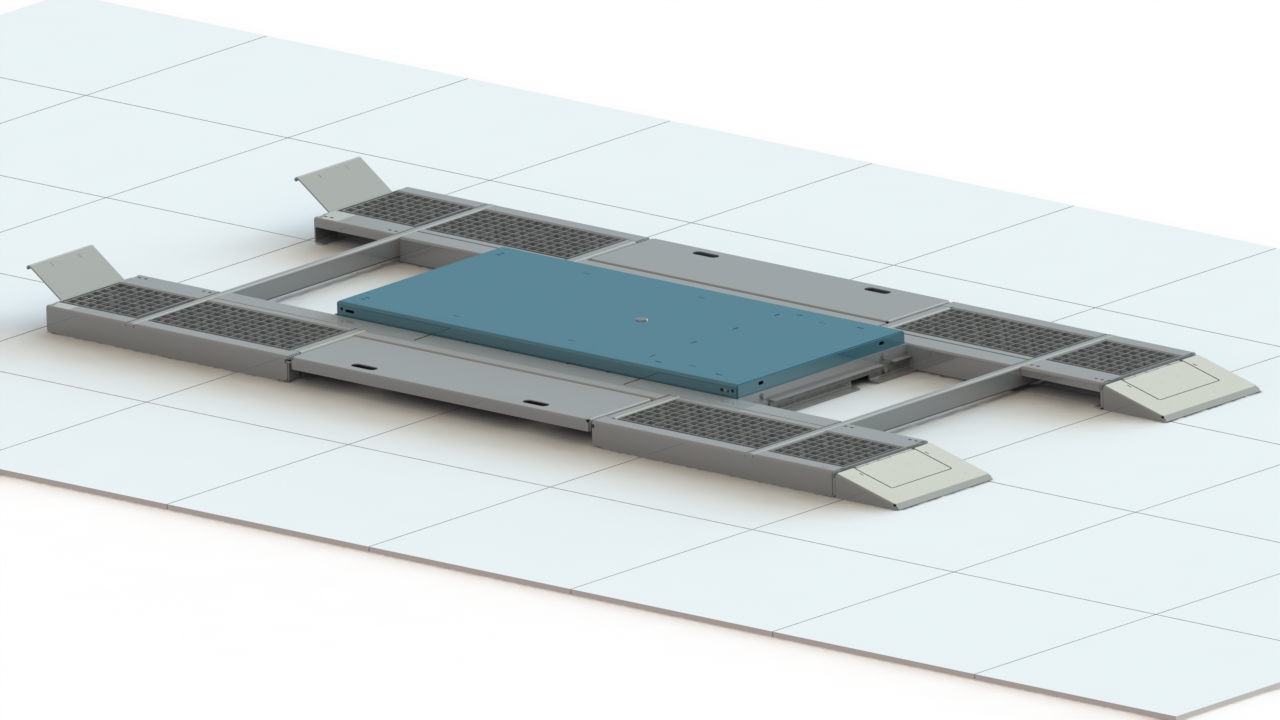

Innovative lift for the clever paint shop owner Herkules Airgomatic Pro 3513 onground Many innovative details help simplify everyday work in the paint shop. Despite the compact design, which also characterizes the previous Herkules lifts, longer and heavier vehicles can also be lifted on the new AirgoMatic Pro 3513 thanks to intelligent roll-off protection and a lifting capacity of 3.5 t. Herkules Airgomatic Pro 3513 onground Herkules Airgomatic Pro 3513 onground Herkules Airgomatic Pro 3513 onground Herkules Airgomatic Pro 3513 onground Herkules Airgomatic Pro 3513 onground Herkules Airgomatic Pro 3513 onground – Ace Quattro Combo with 4 washing stations, 2 for solvent and 2 for waterborne solution.Herkules Airgomatic Pro 3513 onground
Product information
The Herkules AirgoMatic Pro 3513 lifts are characterized by a functional
and well thought-out designVideo
Specifications
Weight (kg) 1017 kg Length (mm) 4404 mm Width / depth (mm) 2000 mm Air supply 6-8 bar Onground or inground inground Lifting on wheels YES Lifting on chassis NO With CE stop YES Lifting capacity (kg) 3500 kg Lifting hight (mm) 1150 mm Pit depth (mm) 150 mm Max wheelstand (mm) 3700 mm Product documents
Document name Document ID Document type Language
Manual AirgoMatic Pro HLS3513-(DUO)-11/14/17/61/64/67
761-168_1.7_EN
Manual
EN
Assembly instructions for AirgoMatic Pro 3513
761-179_1.0_EN
Document Type Assembly Instruction
EN
Grubenplan - Pit Plan (Berost_Grids) st.ges. HLS3513_DE_EN
4-003883_DE
Pit plan
DE, EN
Maßblatt - Dimension sheet HLS3513-14
1-002147
Dimension sheet
DE, EN
Document name Document ID Document type Language Product images
Add ons
Accessories
set for enforced deflation of air-bellow (only in combination with CE-Stop)
Additional grids for the front end for AirgoMatic Pro 3513, 2 pieces, incl. support angles + fasteners
Pit frame (grids), zinc coated
Pit frame for floorgrid, front end closed, zinc coated
Pit frame (concrete), zinc coated
Pit frame for concrete, front end closed, zinc coated
Height adjustable support platform, zinc coated
Special features
Atex assembly & certification HLS3513-14/16 (no retrofit, only new orders)
special paint from standard RAL shade card (Special paint can lead to longer delivery times)
