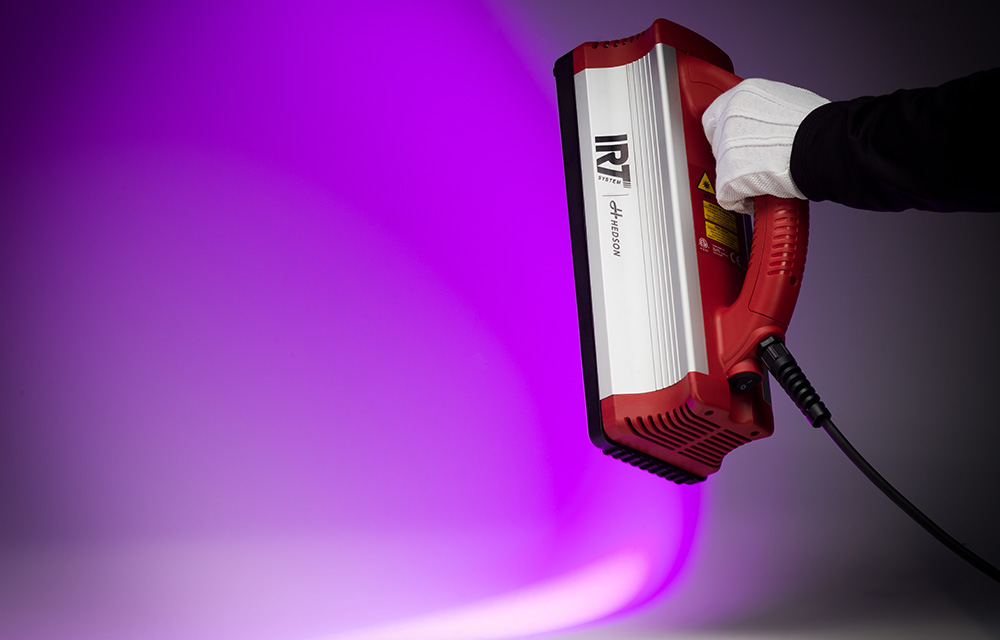

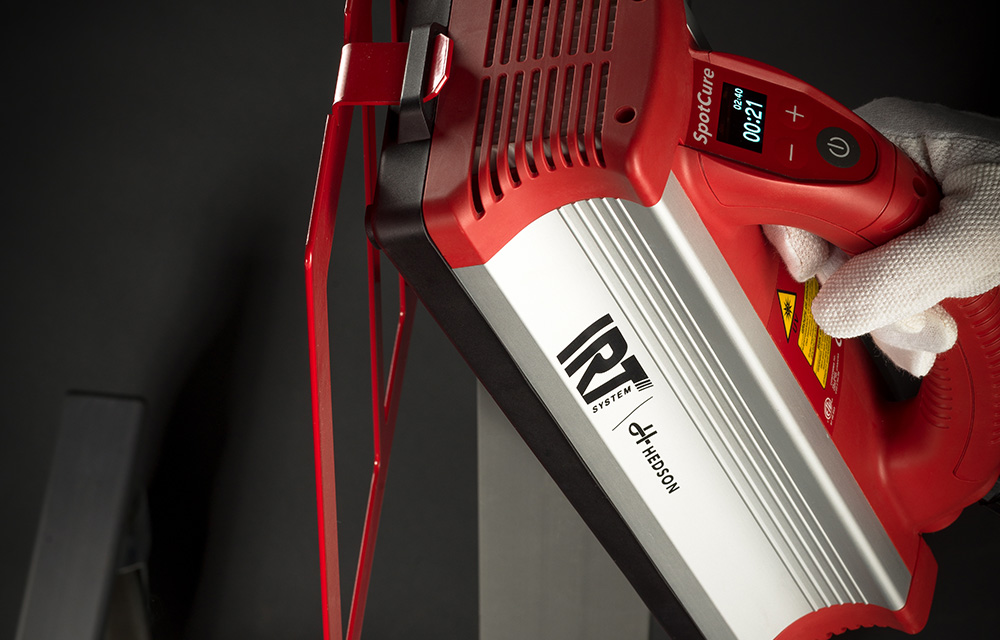

IRT SpotCure2

Next Generation UV curing lamps

An unbeatable combination of power and curing size.

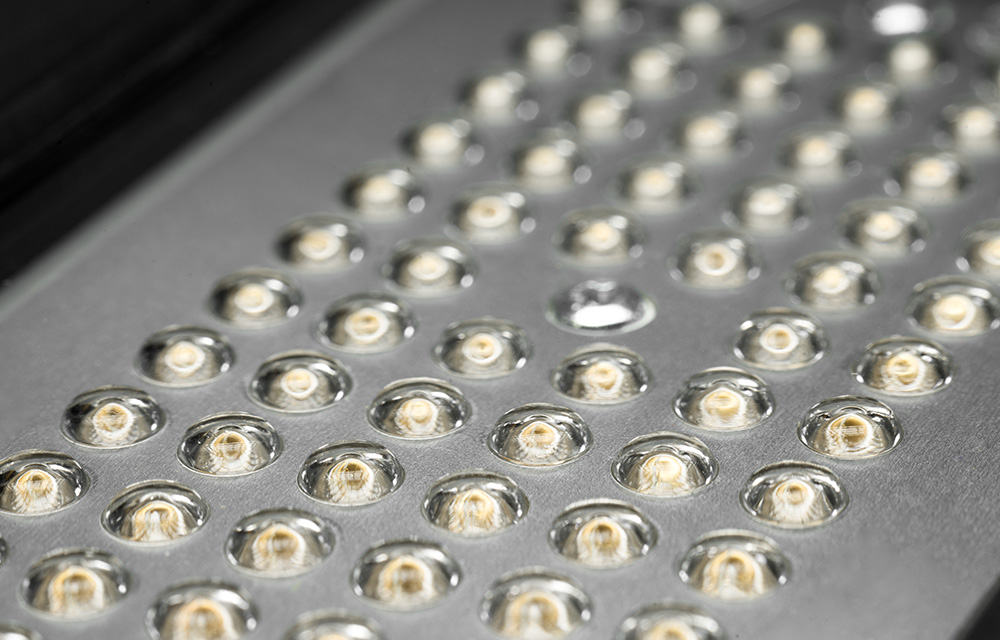

  • 132 high-power LED

  • Individual optics

  • Temperature regulated ventilation

  • Reliable curing results, built to last

IRT SpotCure2
IRT SpotCure2
IRT SpotCure2
IRT SpotCure2

IRT SpotCure2

Product information

  • More light intensity over a larger surface:
    Cures Ø 30 cm (12”) in 20 seconds
    Cures Ø 70 cm (27.5”) in a minute
    Cures Ø 100 cm (39.4”) in 2 minutes
    (Average curing times for a selection of UV Fillers available on the market.
    Details for specific UV activated materials are individual and can vary.)

IRT SpotCure2

Video

IRT SpotCure2

Specifications

Weight (kg)2 kg
Length (mm)335 mm
Height (mm)116 mm
Width / depth (mm)172 mm
Power supply Configure (3)
Infrared/UV LEDUV LED
Battery powered/cordedCorded
HandheldYES

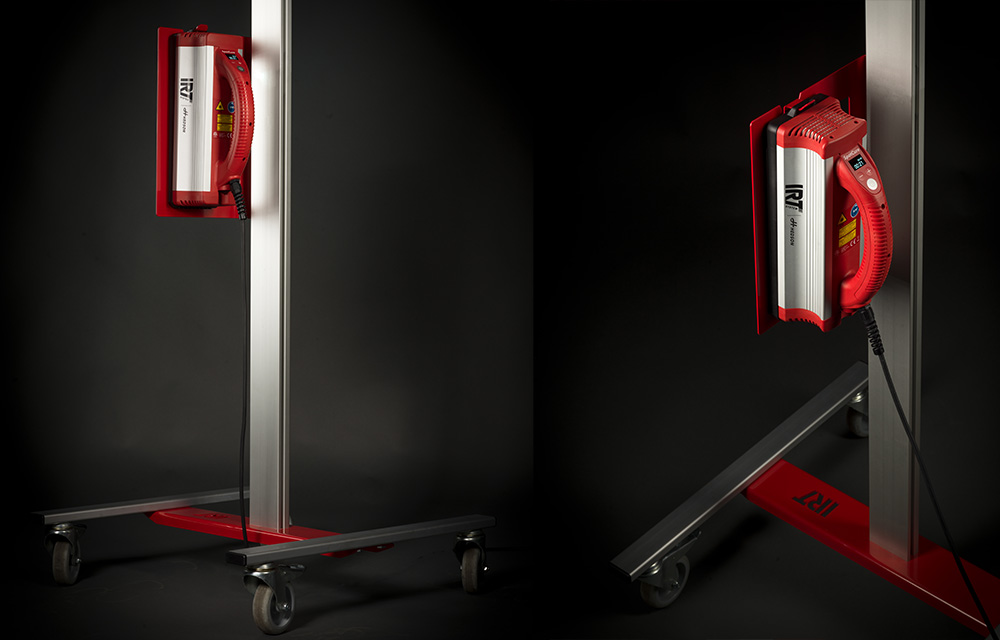

Floor mobileOptional stand
Ceiling installationNO
Curing areaSpot repair
PyrometerNO
Thermal cameraNO
Distance guide laser/distance guide radarNO
Display for energy useNO
Spray boothNO
Automated movementNO
Preprogrammed curing cyclesNO
Temperature control over timeNO

IRT SpotCure2

Product documents

Document nameDocument IDDocument typeLanguage
715423 IRT UV SpotCure2 Instructions Manual INT 715423 Manual EN, DE, FR, SE, ES, IT, PL, NL
Download
IRT UV SpotCure2 Brochure IRT UV SpotCure2 Brochure Brochure EN
Download
Show all documents
Document nameDocument IDDocument typeLanguage
No documents found.

IRT SpotCure2

Product images

IRT SpotCure2

Add ons

Accessories

Image of UV-protection glasses

UV-protection glasses

Article No.: 129070 Product type: IRT

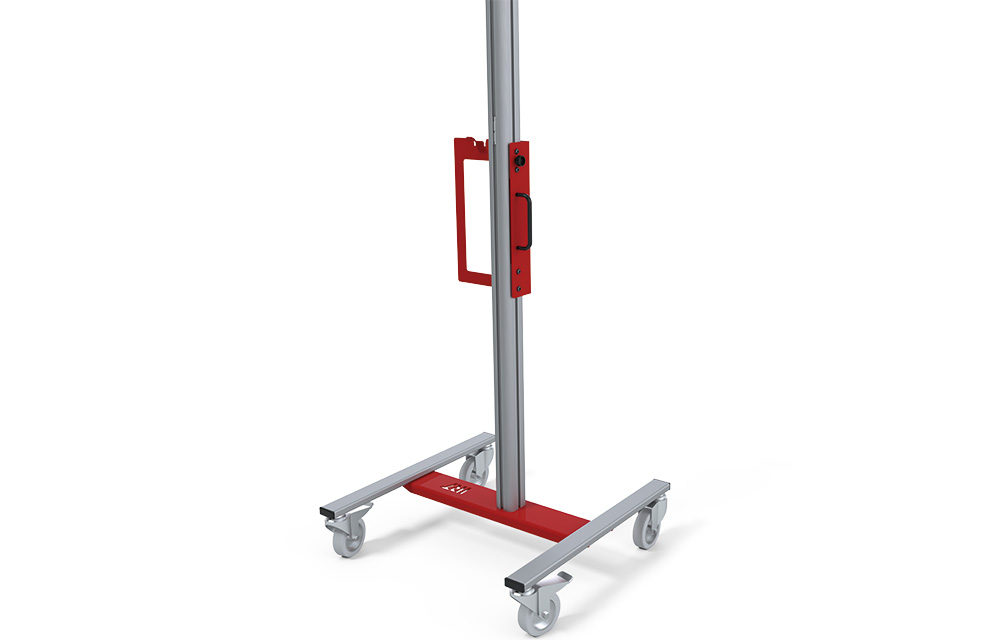

Image of IRT Stand For SpotCure2

IRT Stand For SpotCure2

Article No.: 800907 Product type: IRT

SpotCure2 Hard Suitcase

Article No.: 800906 Product type: IRT

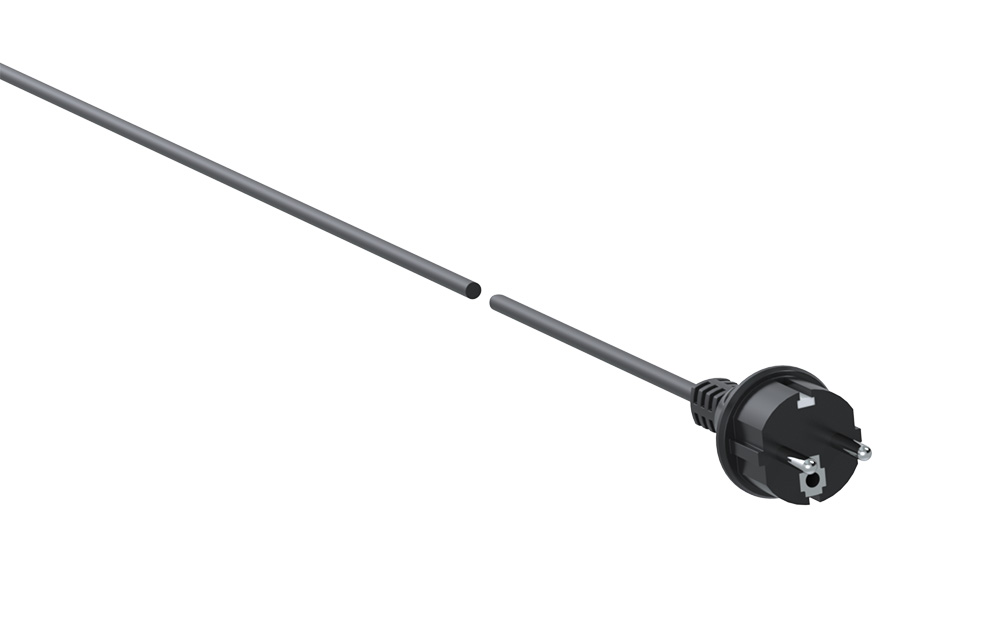

Image of SpotCure2 Powercord 1,8m EU

SpotCure2 Powercord 1,8m EU

Article No.: 715429 Product type: IRT

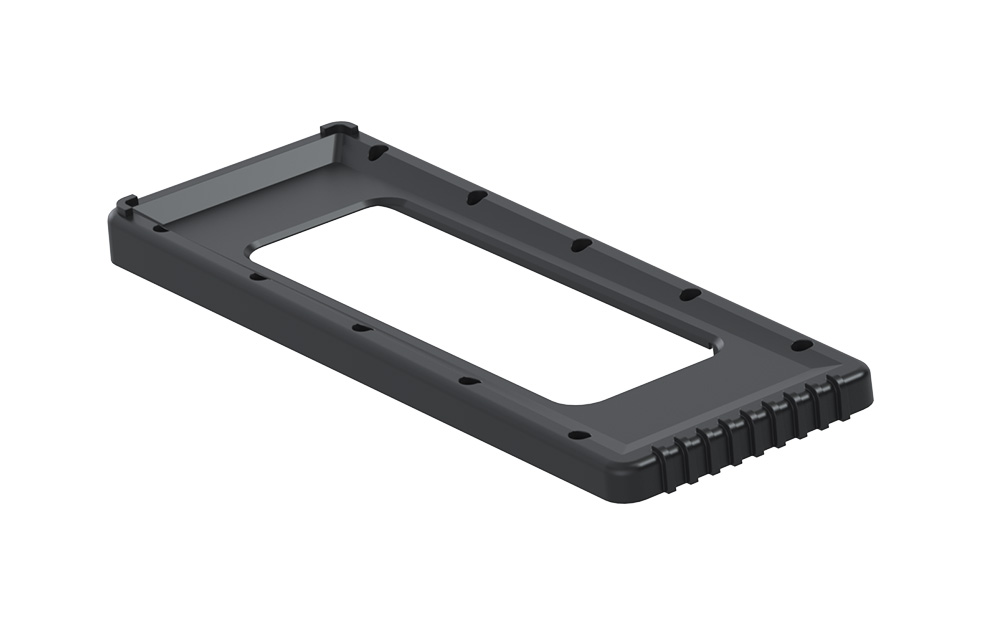

Image of Front frame SpotCure2

Front frame SpotCure2

Article No.: 715428 Product type: IRT

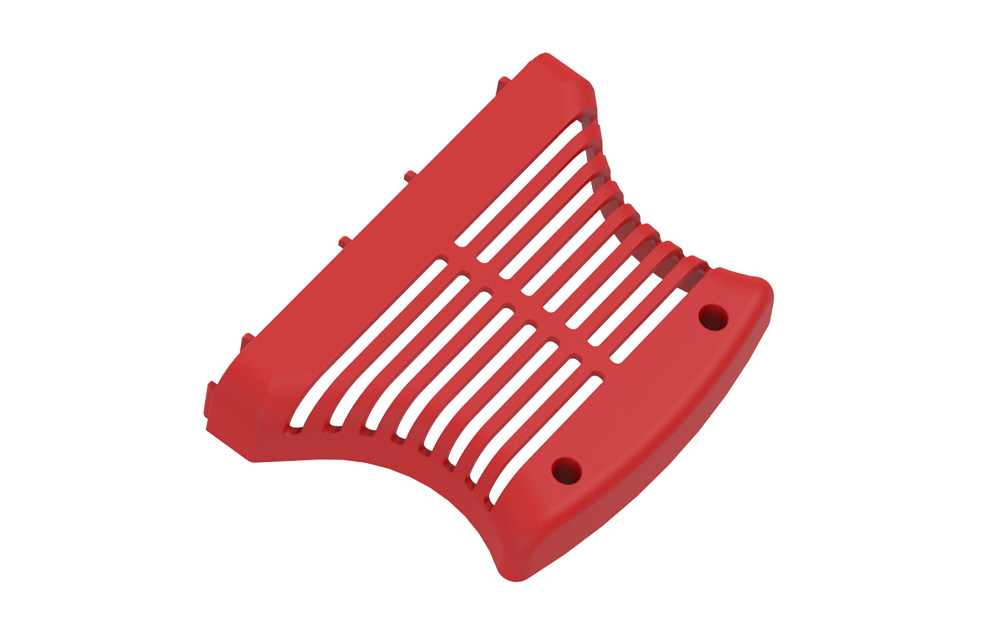

Image of Gable Inlet SpotCure2

Gable Inlet SpotCure2

Article No.: 715426 Product type: IRT

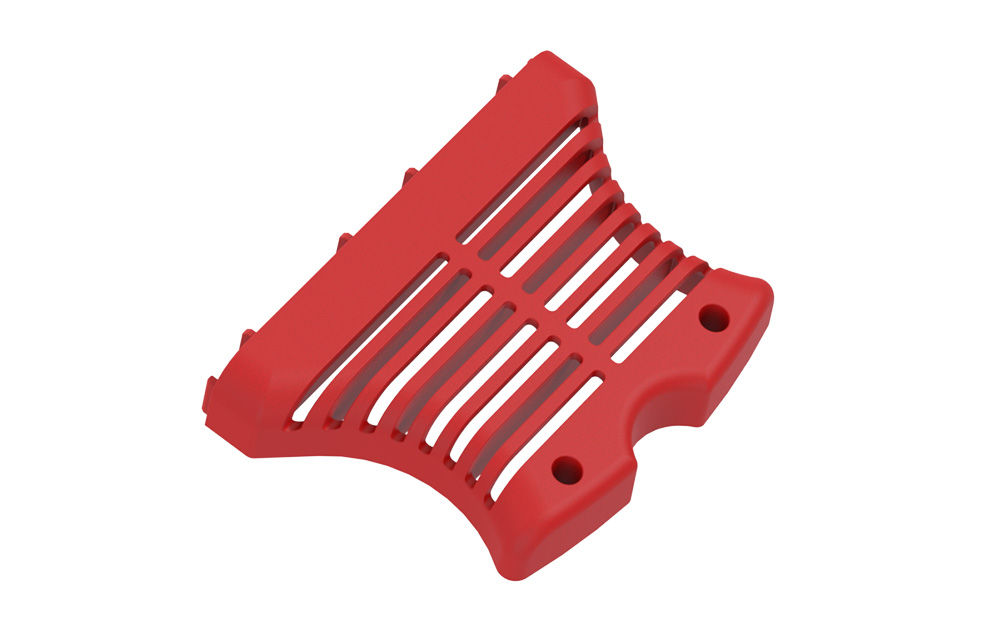

Image of Gable Outlet SpotCure2

Gable Outlet SpotCure2

Article No.: 715427 Product type: IRT

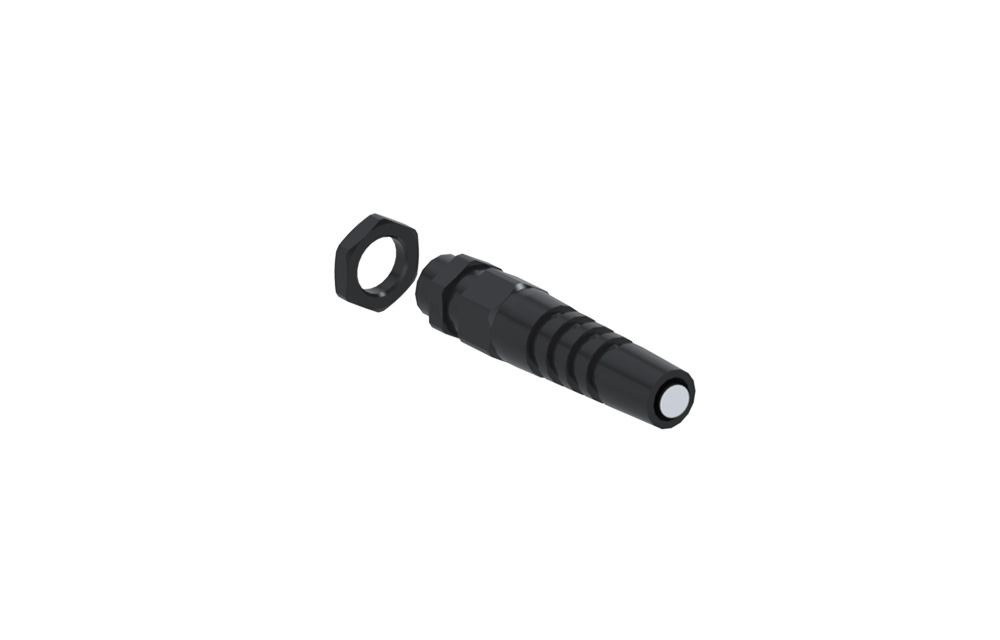

Image of Bend protection SpotCure2

Bend protection SpotCure2

Article No.: 715444 Product type: IRT
Image of Tilting bracket for SpotCure2 stand

Tilting bracket for SpotCure2 stand

Article No.: 715533 Product type: IRT

Consumables

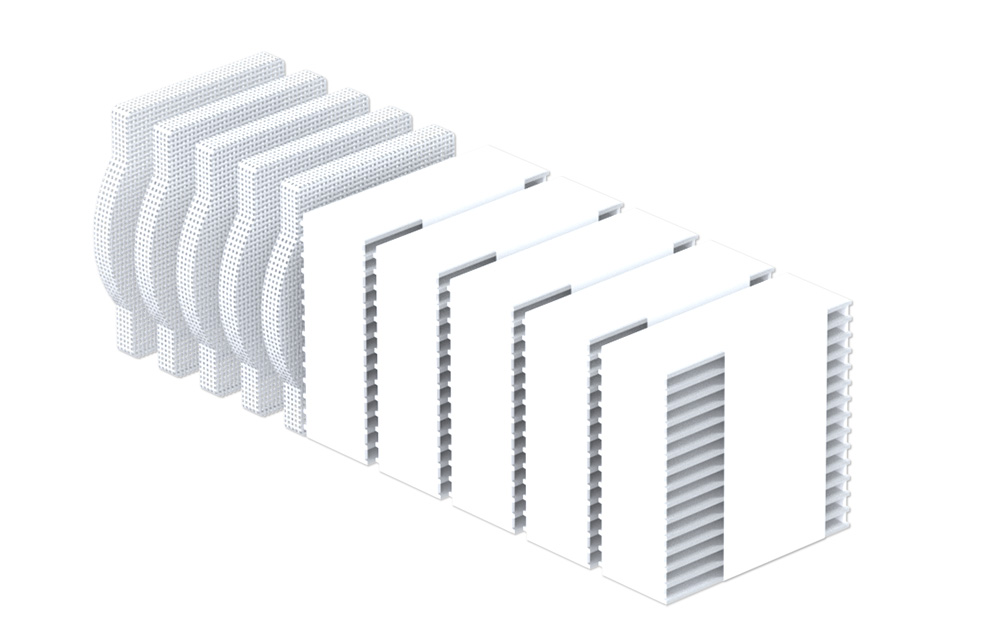

Image of SpotCure2 Filters: 5pcs of inlet & 5pcs of outlet

SpotCure2 Filters: 5pcs of inlet & 5pcs of outlet

Article No.: 715425 Product type: IRT
