IRT 4-1 TCR

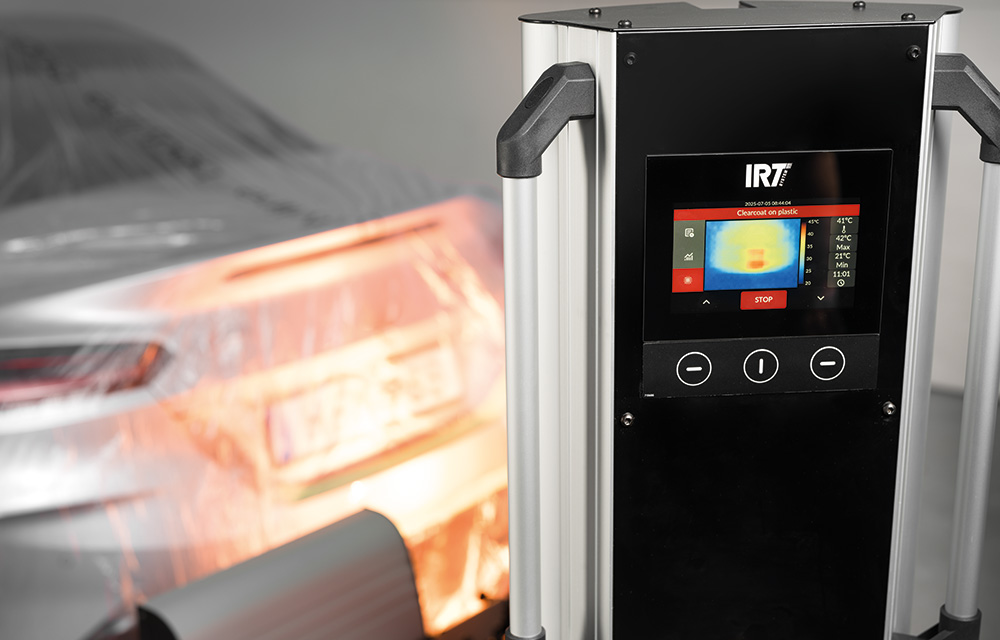

Infrared CURING with Thermal Camera

Our thermal camera acts as a “smart eye” for the curing unit – automatically adjusting the infrared lamps to achieve uniform, precise and energy-efficient curing.

Large coverage: 768 individual measuring points over 170×90 cm.

The curing area is 1.1 x 1.5 m.

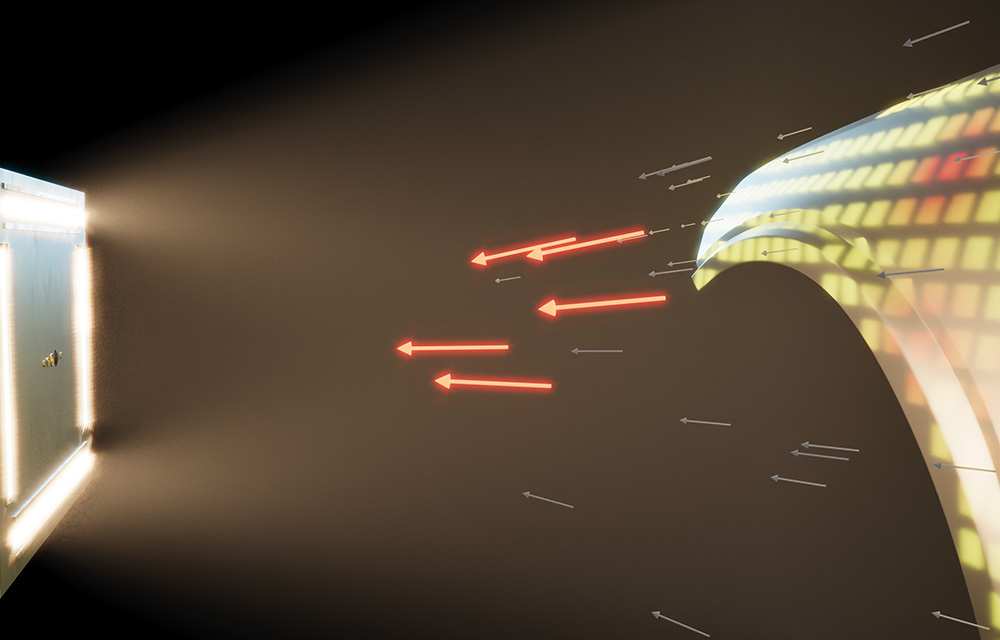

Feed back to control system: Temperature data is continously fed to the control system, which adjusts IR lamp intensity and exposure time to maintain the desired curing profile.

Result:

  • Accurate, real-time temperature monitoring
  • Consistent quality
  • Overheating prevention
  • Energy use optimization

TCR: Professional Infrared Curing controlled by Thermal Camera and Radar from IRT the curing company

IRT 4-1 TCR
IRT 4-1 TCR
IRT 4-1 TCR
IRT 4-1 TCR
IRT 4-1 TCR

IRT 4-1 TCR

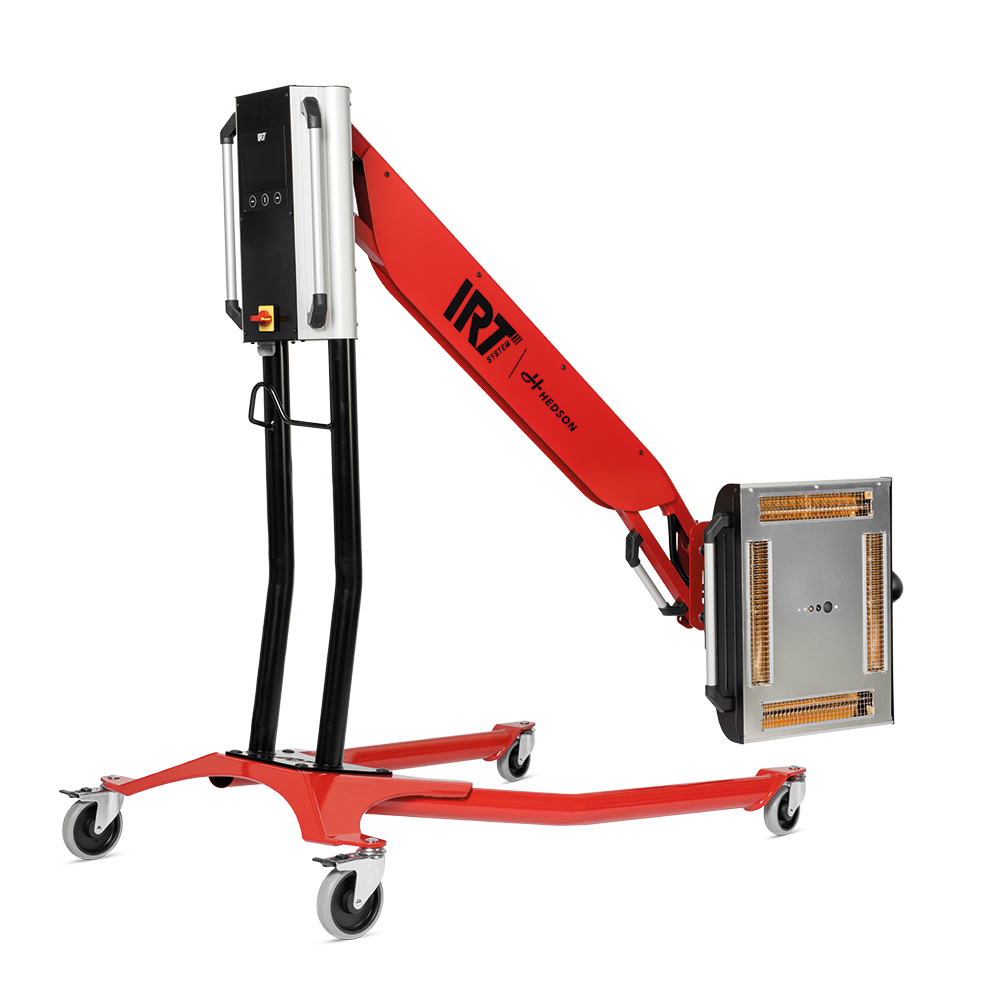

Product information

  • TCR: The intelligent curing station
  • Automatically optimizes and documents each curing job

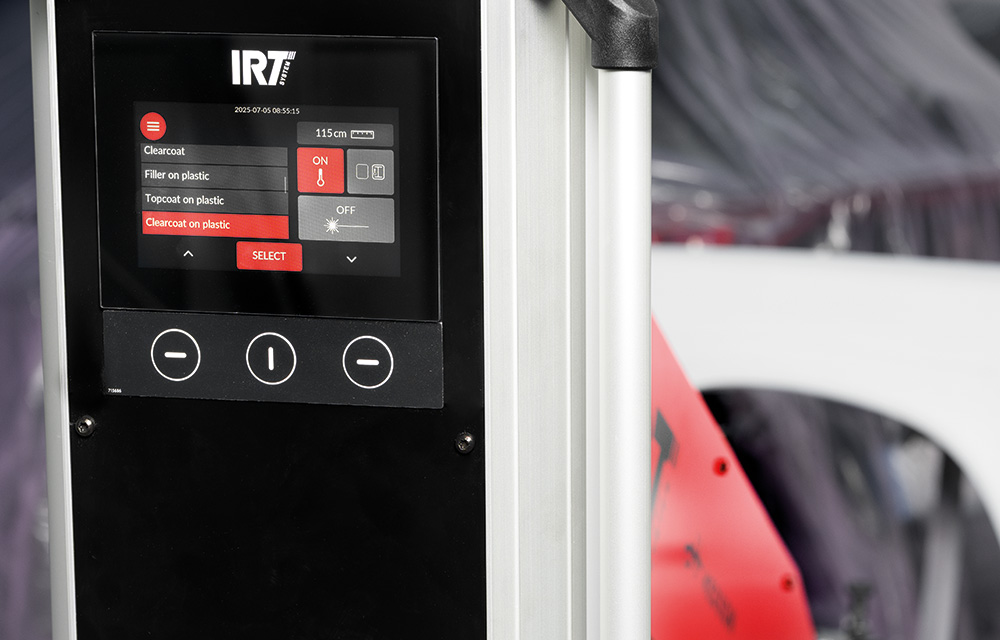

  • Touch screen for instant access

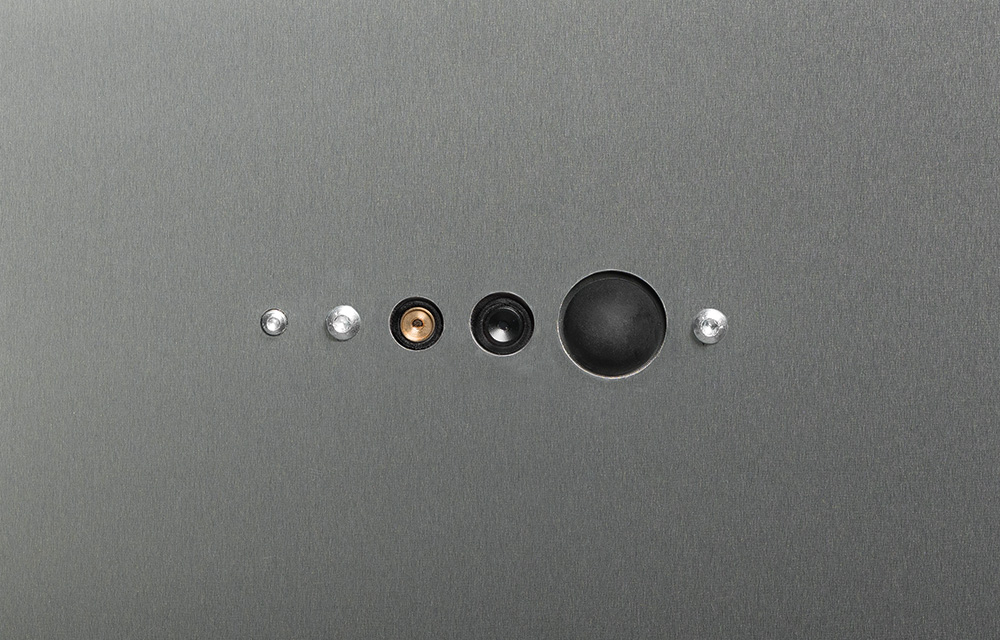

  • Radar distance sensor confirms correct distance
  • Time, ramp and temperature is built-in for putty, filler, base, clear, plastics
  • Continuously adjusts IR power to keep the temperature on track
  • Delivers only the power needed to reach the set temperature
  • The real-time process is displayed, so the operator stays informed
  • Tracks performance, usage and maintenance needs

IRT 4-1 TCR

Video

Product demonstration video (3 min): This video showcases our infrared heater with TWO infrared cassettes. The model on this page features a SINGLE cassette but offers the same innovative technology, controls, and user benefits. The only difference is the size of the curing area (1.1 x 1.5 m for a single cassette).

IRT 4-1 TCR

Specifications

Weight (kg)53 kg
Length (mm)1230 mm
Height (mm)2500 mm
Power supply Configure (5)
Infrared/UV LEDInfrared
Battery powered/cordedCorded
HandheldNO
Floor mobileYES
Ceiling installationNO
Curing area1,1 x 1,5
PyrometerThermal camera
Thermal cameraYES
Distance guide laser/distance guide radarRadar
Display for energy useYES
Spray boothNO
Automated movementNO
Preprogrammed curing cyclesYES
Temperature control over timeYES
Number of infrared cassettes1

IRT 4-1 TCR

Product documents

Document nameDocument IDDocument typeLanguage
715799 TCR Assembly Instruction 715799 Manual EN, DE, FR, NL, SE, IT, ES
Download
715804 TCR Operating Manual rev6 715804 rev6 Manual EN, DE, FR, NL, SE, IT, ES
Download
IRT TCR Brochure EN IRT TCR Brochure EN Brochure EN
Download
Show all documents
Document nameDocument IDDocument typeLanguage
715804 TCR Operating Manual rev4 715804 rev4 Manual EN, DE, FR, NL, SE, IT, ES
Download
715804 TCR Operating Manual rev5 715804 rev5 Manual EN, DE, FR, NL, SE, IT, ES
Download
