IRT UV SmartCure

  • IRT UV SmartCure
    Operational safety in every detail is IRT top priority. SmartCure comes with exchangeable, high quality, long life 18 V lithium-ion batteries. Peak light performance is maintained on a constant high level until the display indicates battery change, no risk of power loss due to discharged battery. The battery charger is hardwearing and reliable. It holds charge over time without risk of overcharging.

    • Excellent curing result in seconds
    • No risk of power loss or over charging
    • Exchangeable batteries eliminate down-time
    • Peak light performance held at max throughout battery cycle
IRT UV SmartCure
IRT UV SmartCure

IRT UV SmartCure

Product information

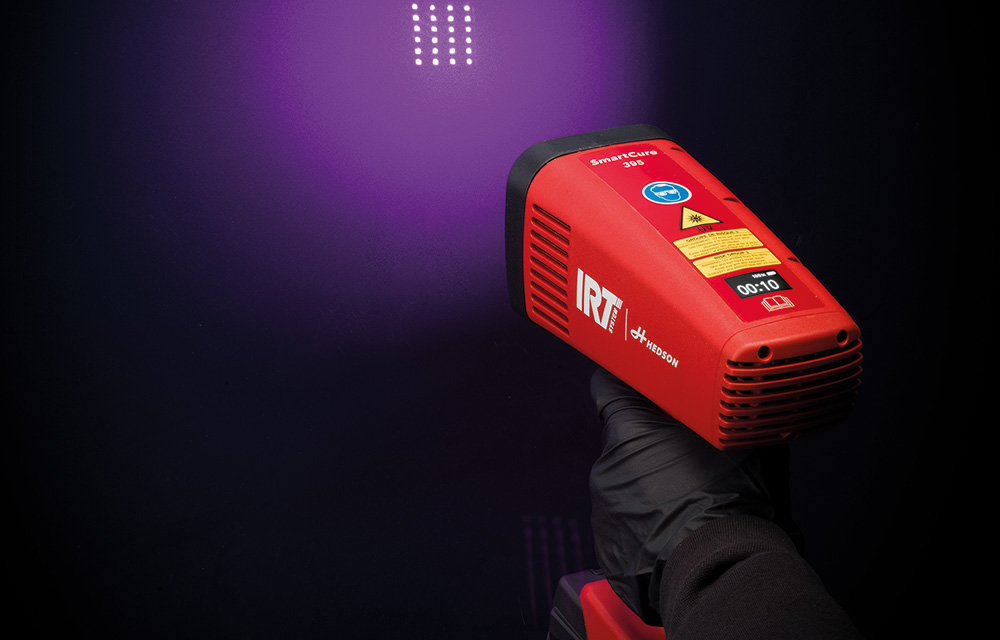

Outstanding UV LED curing performance with exchangeable batteries.
IRT UV SmartCure weighs just above 1 kg and cures 80 spot repairs on one charge

A UV-LED REVOLUTION

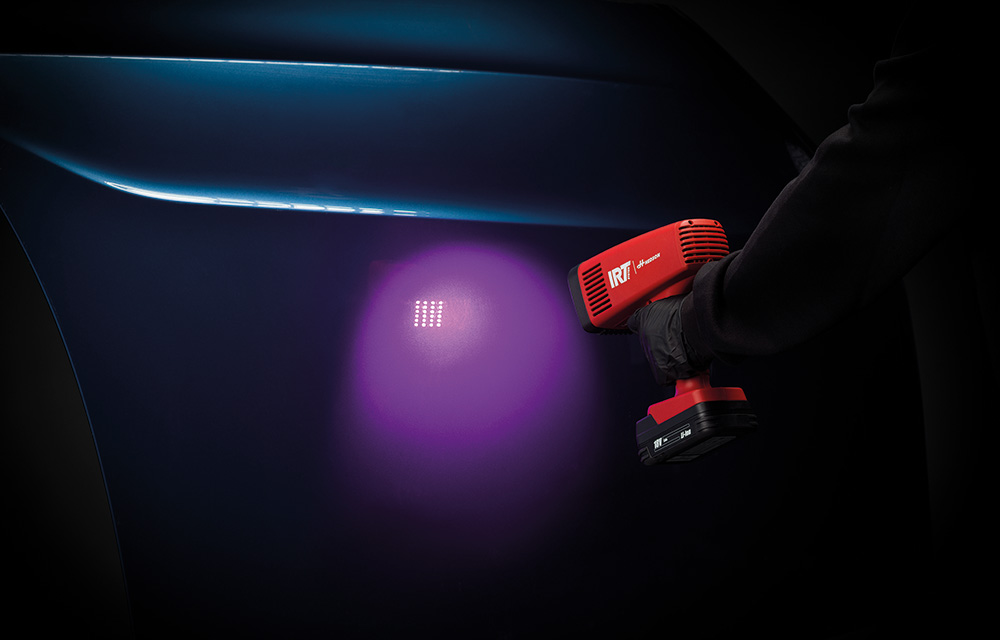

SmartCure is equipped with the latest UV-LED high quality technology for UV-filler and primer. Monitored to keep light performance on a constant high level throughout the complete battery cycle. Cures an area of Ø 16 cm in just 10 seconds. Replace the battery with a click.

EFFICIENCY IN EVERY DETAIL

Advanced electronics guarantee the highest possible performance from battery, UV-LED module and cooling system. Experience zero power loss even with an almost empty battery. Safety features such as auto shutdown if electronics or UV-LED are overheated. The cooling system activates on demand.

ERGONOMIC DESIGN

IRT UV SmartCure is compact with an ergonomic trigger switch grip and comfortable hardwearing handle design.

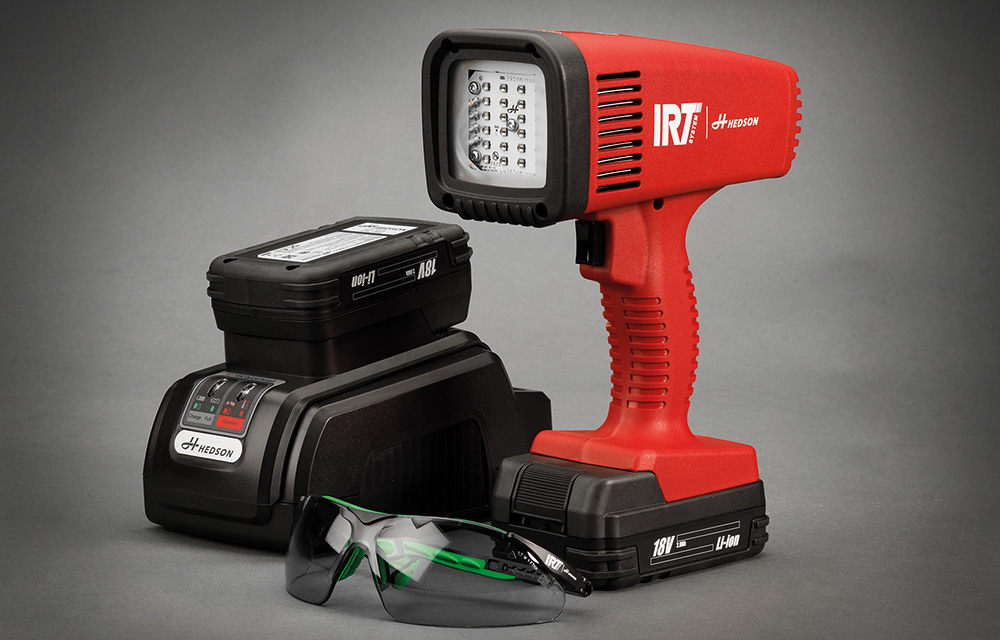

Twin battery pack, charger, magnetic wall bracket and UV safety eye wear is included.

IRT UV SmartCure

Video

IRT UV SmartCure

Specifications

Weight (kg)1.16 kg
Length (mm)189 mm
Height (mm)250 mm
Width / depth (mm)88 mm
Power supplyBattery 18 VDC, Charger 100-240 VAC
Infrared/UV LEDUV LED
Battery powered/cordedBattery powered
HandheldYES
Floor mobileNO
Ceiling installationNO
Curing areaSpot repair
PyrometerNO
Thermal cameraNO
Distance guide laser/distance guide radarNO
Display for energy useNO
Spray boothNO
Automated movementNO
Preprogrammed curing cyclesNO
Temperature control over timeNO

IRT UV SmartCure

Product documents

Document nameDocument IDDocument typeLanguage
IRT UV SmartCure Brochure EN IRT UV SmartCure Brochure EN Brochure EN
Download
Instruction manual IRT UV SmartCure 715098 Manual EN, FR, DE, SE, ES, IT, PL, NL, DK
Download
Show all documents
Document nameDocument IDDocument typeLanguage
No documents found.

IRT UV SmartCure

Product images

IRT UV SmartCure

Add ons

Accessories

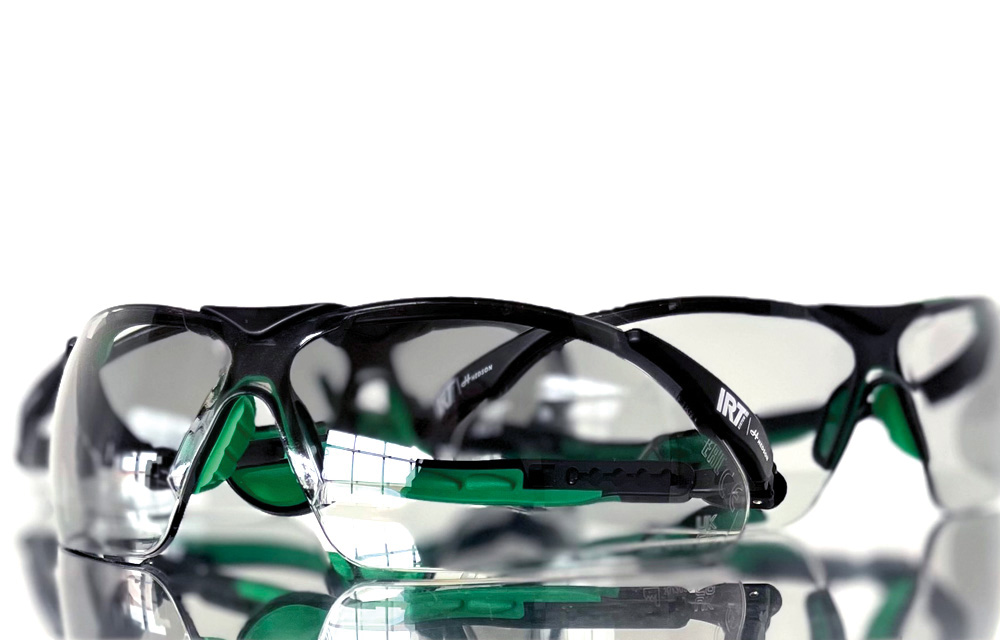

Image of UV-protection glasses

UV-protection glasses

Article No.: 129070 Product type: IRT

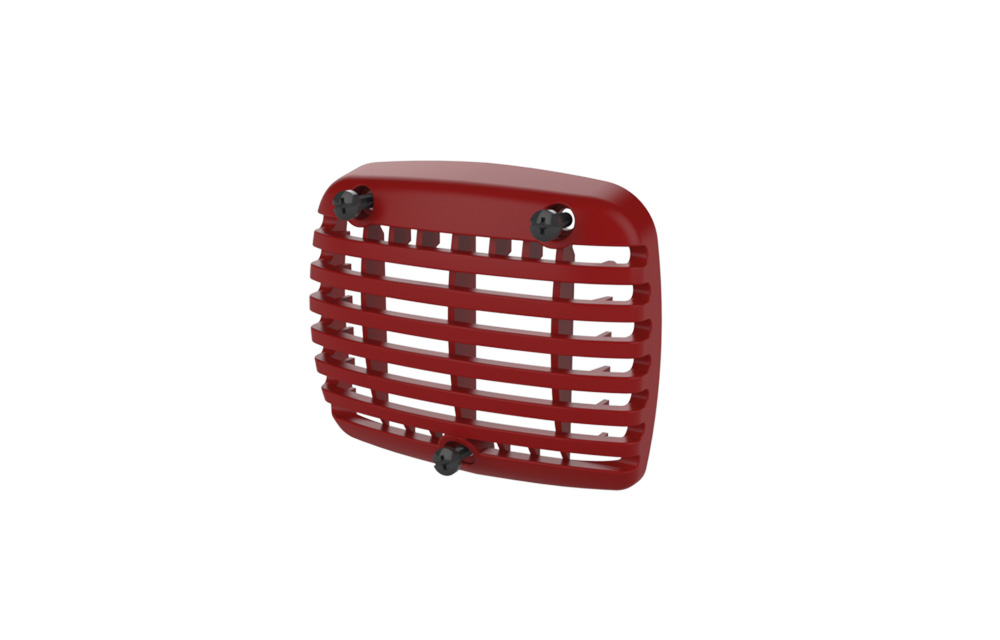

Image of Backpart UV SmartCure CPL (incl. screws)

Backpart UV SmartCure CPL (incl. screws)

Article No.: 715151 Product type: IRT

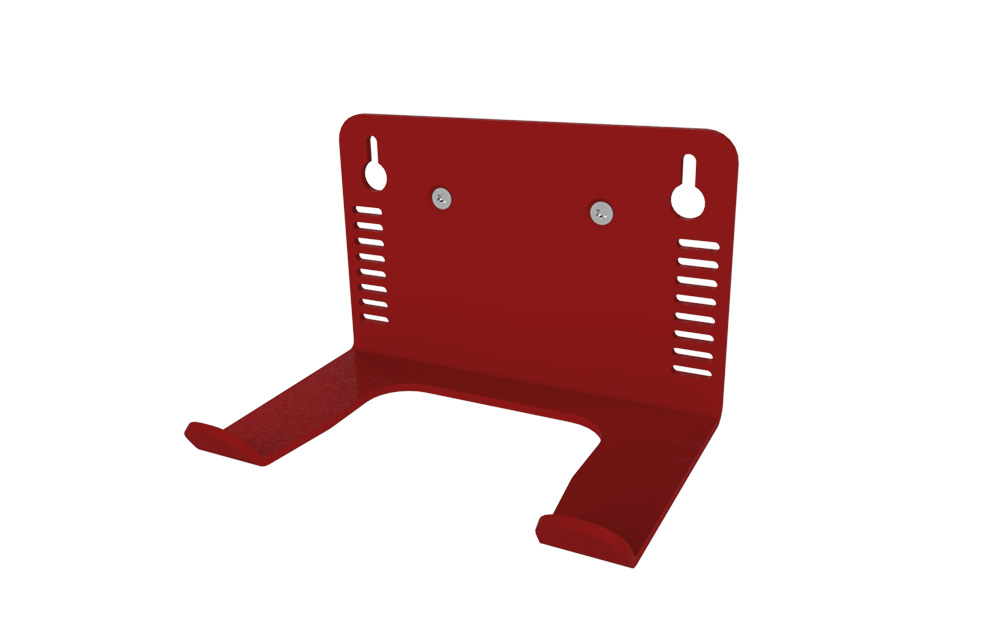

Image of Wall bracket UV Smart Cure (incl. magnets)

Wall bracket UV Smart Cure (incl. magnets)

Article No.: 715129 Product type: IRT

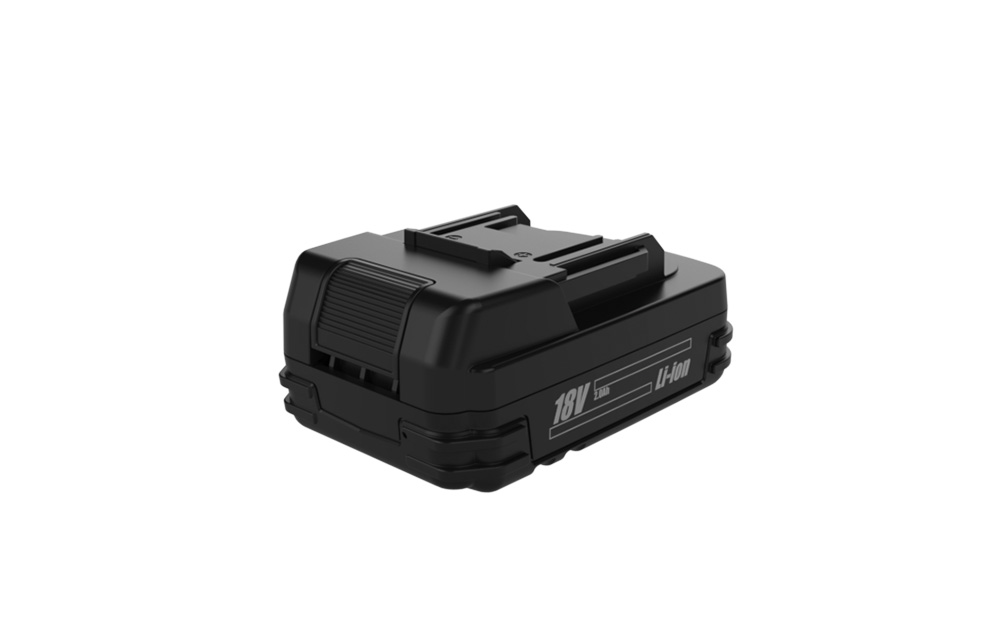

Image of Battery UV Smart Cure - 18V 2.0Ah Li-ion

Battery UV Smart Cure - 18V 2.0Ah Li-ion

Article No.: 715093 Product type: IRT
Image of Charger UV SmartCure - 18V Li-ion

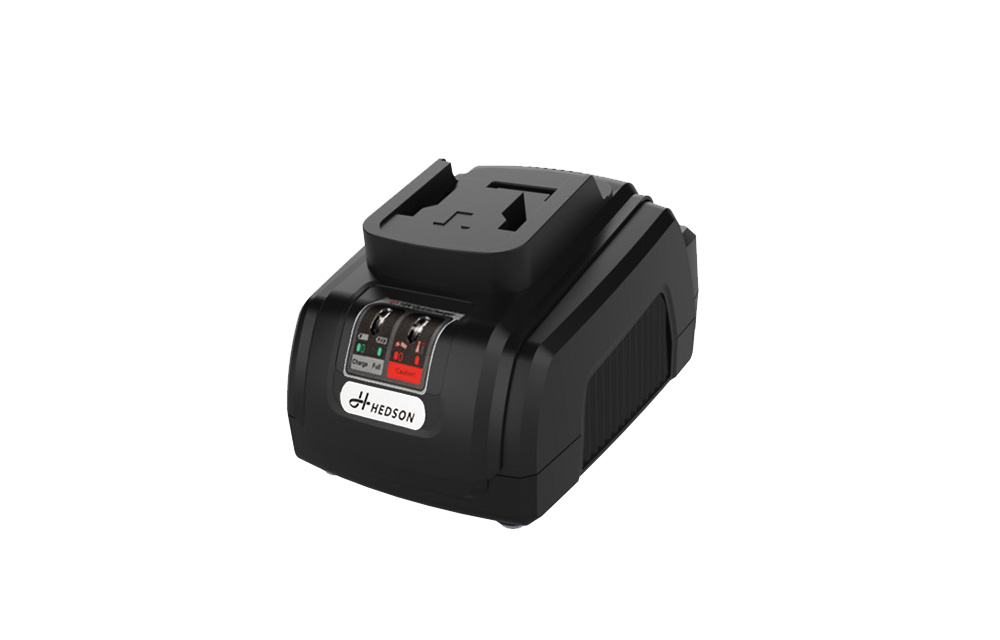

Charger UV SmartCure - 18V Li-ion

Article No.: 715094 Product type: IRT

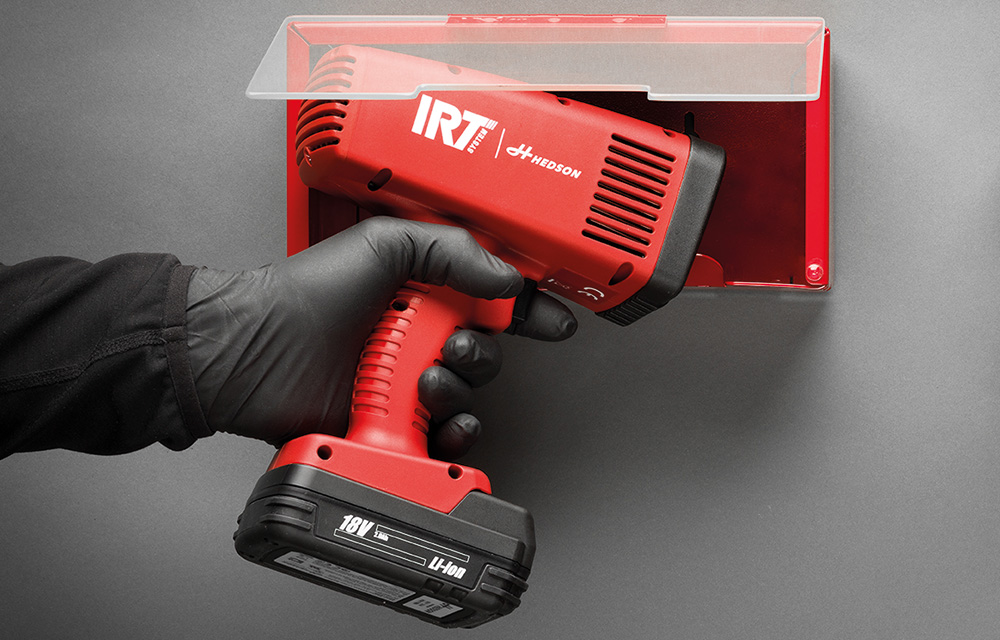

Image of Dust Cover with magnets

Dust Cover with magnets

Article No.: 715193 Product type: IRT

Cable for charger UV Smart Cure - EU plug

Article No.: 715154 Product type: IRT

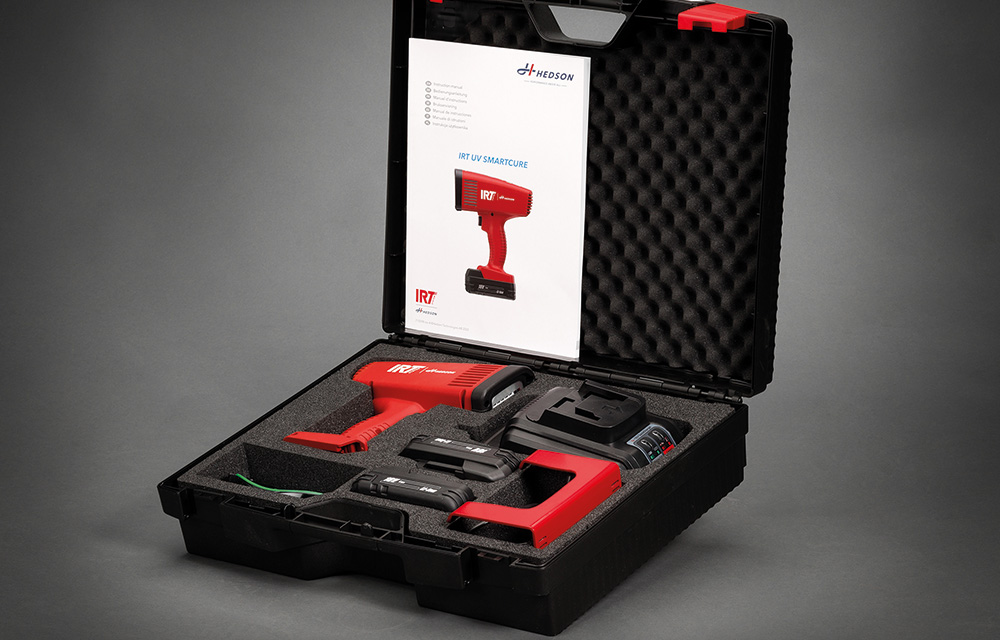

SmartCure Hard Case

Article No.: 800806 Product type: IRT

Consumables

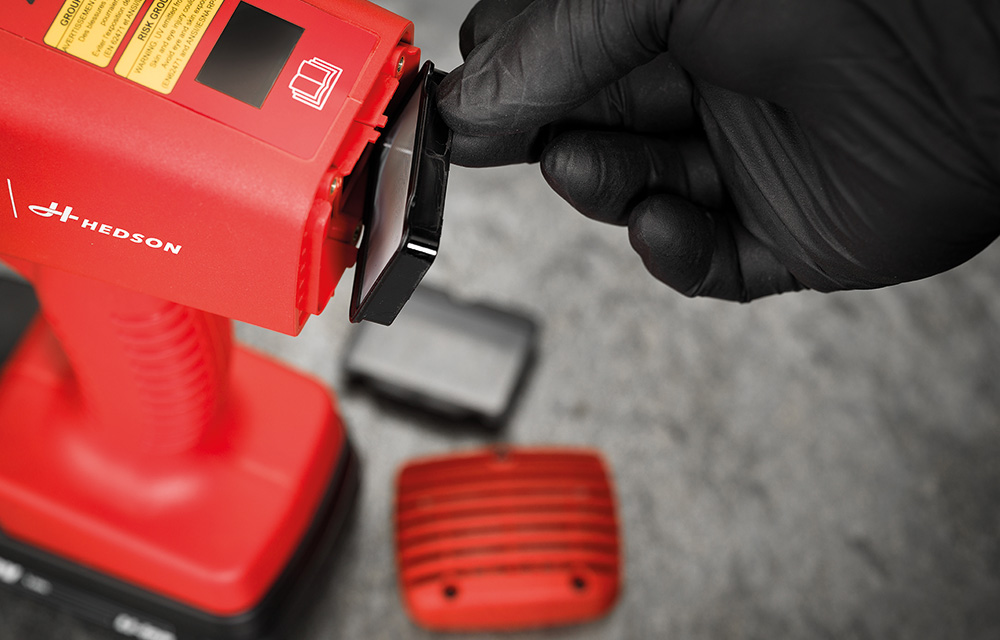

Image of Filter UV SmartCure

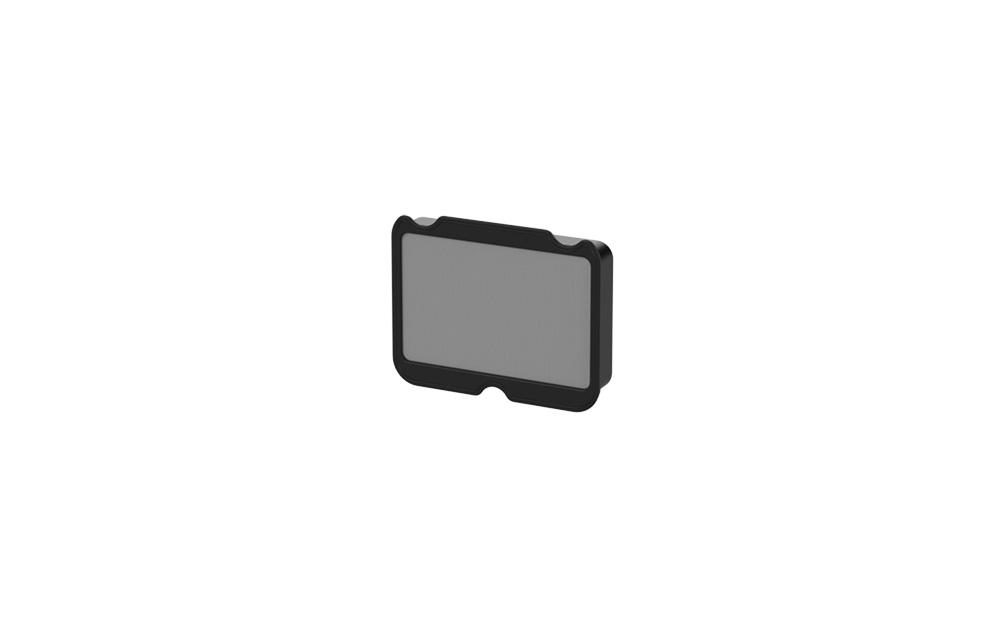

Filter UV SmartCure

Article No.: 715074 Product type: IRT
